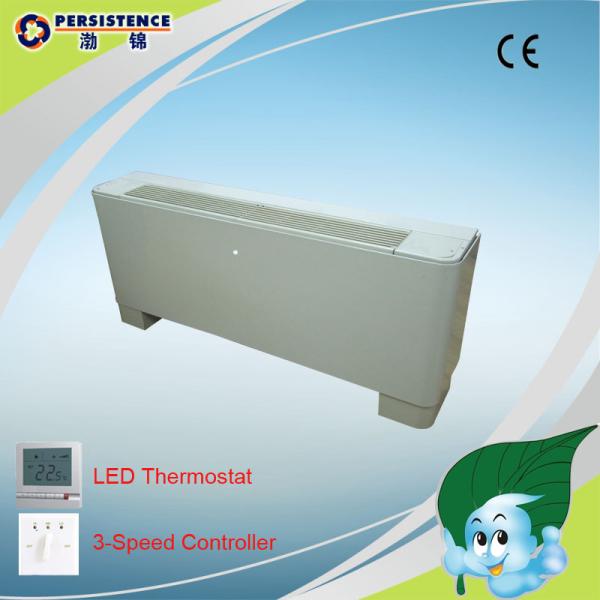

Universal Fan Coil Unit

Universal Fan Coil Unit isdesigned for vertical and horizontal exposed installation , with classical elegant exterior,PVC drain pan and 2 water outlet.Hollow structure design can enhance the thermal insulation properties at the same time prevent from leaking . Left-right water pipe connection can be changed freely.

Cooling Capacity: 1.8kw to 12.6kw

Heating Capacity:2.7kw to 18.9kw

Air Flow:340m3/h to 2380m3/h (200CFM to 1400CFM)

Specical Features of Universal Fan Coil Unit:

1)Compact Exterior - With a compact, graceful and robust design, this super thin unit can be concealed in a small space vertical or horizontal.

2)Low Noise - The unit features a forward-pitched low-speed centrifugal fan with wide impellers. The fan has a good dynamic balance and a stable performance, and minimizes the operation sound while ensuring enough air flow and the static pressure of outlet air by using efficient sound-dampening and heat-insulation material.

3)Efficient and Energy Saving - To maximize heat transfer and exchange efficiency, the unit features heat exchange coils made of quality copper tubes, efficient hyperbolic aluminum shutter fins , precise mechanic tube expansion and a fan with wide impellers and a high air supply capacity.

4)Easy and Flexible Installation - This type of fan coil units can be easily installed. Left-right water pipe connection can be changed freely.

5)Safe and Leakage-proof - The condensate water pan are molded as a whole (no welding line or dots) and entirely coated with fireproof material to prevent leakage. A specially designed pitch on the collector also helps ensure smooth discharge of condensate water.

Optional Accessory:

1.E-heatercan be installed and easily maintained

2.EC Motor

3.Three-speed controller

4.LED thermostat

5.2-Way or 3-Way water valve; 2-Way or 3-Way build-in water valve

6.Flesh air duct connection

7.Mod-bus control system

8.Detailed technique manual is available.
